PLC Controlled Single or Double Material Chicken Cage Mesh Welding Machine
Model JLW1200 Mesh width ≤1200mm wire diameter 2mm-4mm Cross wire space customizable Line wire space customizable Welding transforme 125KVA*3 Diagonal tolerance ±2mm(mesh sheet of 2 meter length) Material Cold drawing wire or galvanized wire Welding speed 60-96 times/min. Mesh output form customized length Line wire feeding type Pre-cut wire Cross wire feeding type Pre-cut wire Control system PLC This is our newly developed single or double material chicken cage mesh welding machine that can be used in the breeding series. The width of the welding machine is 1200mm, the diameter of the welding wire is 2-4mm, the welding speed is 60-96 times/minute, the vertical line is for coiling material, and the horizontal line is for cutting material. The power system is electric and controlled by PLC programmable controller
Standard configuration: pay-off reel, main machine, hopper, dragnet, shearing machine, and netting trolley.
Specific prices may vary depending on machine configuration
Pre sales service
1.Our service team takes user needs as the starting point, carefully studies user needs, and provides free technical consultation and model selection.
2.The equipment is designed according to the specific requirements of different customers, considering whether the layout of the customer’s house is scientific, whether the production process is rigorous, whether the equipment is in place, and the future market prospects of the product, in order to provide special equipment designs for different customers based on their specific situations.
After-sale service
1. Keep records for each customer, provide long-term supply of spare parts, and deliver them to customers as quickly as possible according to their requirements.
2.After you receive the product, we will send technical personnel to your factory.
3. Then they will guide your workers to patiently install and debug the machine until it can work properly.
4. If there is a problem with the equipment that the user cannot troubleshoot, we will send technical personnel to the user’s factory as soon as possible to promptly resolve the problem and resume production.
5. Actively improve practical issues through customer feedback, continuously enhance product and service quality, improve existing products, structures, performance, and quality to meet user needs.
6. When the product is replaced or there are significant improvements, the company will provide timely information to users; Assist in product design and installation system upgrades according to user requirements, and provide modified equipment to meet user needs.
Company ProfileAnping Shenkang wire mesh products Co., Ltd. specializes in manufacturing wire mesh making machines.We have nearly 20 years’ experience in this industry.Our main products covers wire mesh welding machine for fencing, animal cage mesh welding machine, wire mesh welding machine for construction, reinforced steel mesh welding machine, electric welded wire netting machine, roll mesh welding machine, wire straightening and cutting machine, grassland net (cattle net) weaving machine, wire drawing machine, steel rebar cold rolling line, chain link fence making machine, barbed wire making machine, etc. Machine products are mainly applied in construction & building, highway, railway, coal mine, airport fence, garden, hardware, stadium fence, urban construction network and other fields.Anping Shenkang Wire Mesh Products Co., Ltd. is located in Anping County, Hebei Province, which is famous for the “hometown of wire mesh” in China, at the intersection of Beijing, Tianjin and Shijiazhuang. lt is a medium-sized enterprise specializing in the design, production and sales of various wire mesh welding machines. It is specialized in manufacturing in steel mesh welding machine for steel wire CRB600, construction mesh welding machine, automatic chicken cage mesh welding machine, construction mesh welding machine, CNC fence mesh welding machine, Anti crack mesh welding machine, large coal mine support mesh welding machine, prefabricated slab component mesh welding machine, gantry pneumatic welding machine, large, medium and small reinforced steel bar straightening and cutting machine, and full-automatic warp and weft mesh welding machine for coal mine. Our factory has always served our customers with “excellent quality, reasonable price, considerate after-sales service”. Our factory always strives for development by innovation and survival by reputation. In product development, we apply modern science and technology in combination with the application of actual demand, and develop products that adapt to the market in the 21st century. Our factory is constantly expanding the domestic and foreign markets with excellent quality, good reputation, high-quality service, and reasonable price. With strong scientific research and professional production as the backing, we have created one proud achievement after another. Our machines have been sold to major coal groups and metal mining enterprises, as well as to Southeast Asia, the Middle East, Europe, the United States, Africa and other countries. Our factory is willing to cooperate with you sincerely to create a brilliant tomorrow. We sincerely welcome friends from all walks of life at home and abroad to call us, negotiate business, and await your inquiries and patronage at any time. We believe that our products can bring you success. We assure you of our good service as our responsibility.
Our factory is the first one in Anping to achieve the welding speed at more than 96 times of welding per minute. So far, we have 12 national patent certificates and there are still another five patents in the process of applying.Frequently asked question
Ask: What is the diameter of the welding wire in the machine?
Answer:2-4millimeters.
Ask: How long does it take for delivery?
Answer: 40-45 days.
Ask: Does your company provide machine transportation?
Answer: Yes, we will provide you with the most favorable shipping route based on the delivery address you provided.
Ask: What packaging is used for the machine?
Answer: Wrap the machine in cling film and place it in a container.
Ask: Are you a trading company or a factory? Where is the location of the unit?
Answer: Our factory has been established for over 20 years and has its own trading department. Our factory is located in Anping County, Hebei Province, China. The nearest airport is Beijing Airport or Shijiazhuang Airport. We can pick you up from Shijiazhuang city.
Ask: Can we arrange for engineers to install the machines we purchased?
Answer: Yes, our engineers have been to over 60 countries before. They are very experienced.
Ask: What is the guarantee time for your machine?
Answer: Our warranty period is 2 years after the machine is installed in your factory.
Ask: Can your products be exported for transportation?
Answer: Sure. We have rich experience in exports.Ask: Can you provide us with the customs clearance documents we need?
Answer: Sure. We can provide relevant materials such as customs clearance documents, CE certificates, Form E, and certificates of origin.If you are interested in our machine, please provide me with the machine: width, mesh size, wire diameter. I can provide you with a more accurate quotation and a precise drawing template for your reference
-
Pneumatic hanging wire automatic net out and net down steel mesh welding machine
The pneumatic wire-hanging automatic net-out and net-falling steel mesh welding machine is a special equipment used to produce steel mesh and welded mesh products of various specifications and sizes. It adopts pneumatic wire hanging technology and can automatically complete the processes of forming, welding, shearing and netting of mesh products. The equipment has the characteristics of high automation and high production efficiency, which can greatly reduce labor costs and improve production efficiency. Through the automated control system, operators can easily adjust the equipment to adapt to the production needs of steel mesh and welded mesh of different specifications. In addition, the equipment also has stable welding quality and reliable performance, and is suitable for the production of various mesh products such as steel mesh, barbed wire mesh, and masonry mesh. The pneumatic wire-hanging automatic wire-exiting and net-falling steel mesh welding machine has become an indispensable production equipment in the construction industry and engineering fields.
-
Deer Net machine
This product is a fully automatic weaving machine for cattle fence nets, deer nets, and grassland nets. It can produce one grid in six seconds per second. The machine works very smoothly without jamming and many other advantages: Circle-wound fixed-knot wire mesh, grip-type fixed-knot wire mesh, and double-layer circle fixed-knot wire mesh are all excellent products.
-
Chain link fence mesh making machine
Chain link fence mesh making machine
is also known as diamond mesh machine and coal mine support mesh machine. -
Reinforced mesh bending machine
The steel mesh bending machine is a device used to process steel mesh. It is mainly used to bend and shape the steel mesh to meet the needs of specific shapes of steel mesh in buildings and concrete structures. This kind of equipment usually consists of a feeding system, a bending system and a discharging system.
The feeding system is used to feed the steel mesh into the bending machine. The bending system bends the steel mesh through a series of rollers or clamps, and finally the bent steel mesh is sent out through the discharging system.
Reinforcement mesh bending machines usually have efficient and precise bending capabilities and can adapt to different specifications and sizes of steel mesh. This kind of equipment is usually equipped with an automated control system, which can realize automatic adjustment and operation, improve production efficiency and reduce labor costs.
Steel mesh bending machines are widely used in the construction and concrete structure industries. They can improve the accuracy and efficiency of steel mesh processing and ensure the quality and stability of steel mesh in building structures.
Bending wire diamete 6mm-14mm Bending mesh width 10mm-7000mm Bending speed 8 strokes/min. Bending drive Hydraulic Max. bending angle 180 degree Max. bending force 33 pieces of wire (wire diameter 14mm) Power supply 380V50HZ Overall power 7.5KW Overall dimension 7.2×1.3×1.5m Weight About 1 ton
-
Wire drawing machine BSJ-5X
The can-connected wire drawing machine is a professional equipment used to wire-draw metal cans to improve their appearance, texture and surface finish. This equipment is suitable for various metal cans, such as stainless steel cans, aluminum cans, etc., and is widely used in food, beverage, cosmetics and other industries.
Features:Efficient: continuous operation, improve production efficiency and save labor costs.
Precision: Using advanced wire drawing technology, the surface of the tank can be finely processed to ensure a consistent wire drawing effect.
Stable: The equipment operates stably, is easy to operate and easy to maintain.
Automation: Equipped with an intelligent control system to realize automated production management and improve production efficiency.
Multi-function: Drawing processing with different specifications and requirements can be customized according to customer needs to meet the processing needs of different products.
Application areas:Can-connected wire drawing machines are widely used in food, beverage, cosmetics and other industries. They are used to wire-draw metal cans to enhance product appearance and texture and increase product added value.
The above is a brief introduction to the can wire drawing machine. If you need more details, please feel free to consult our professional team. -

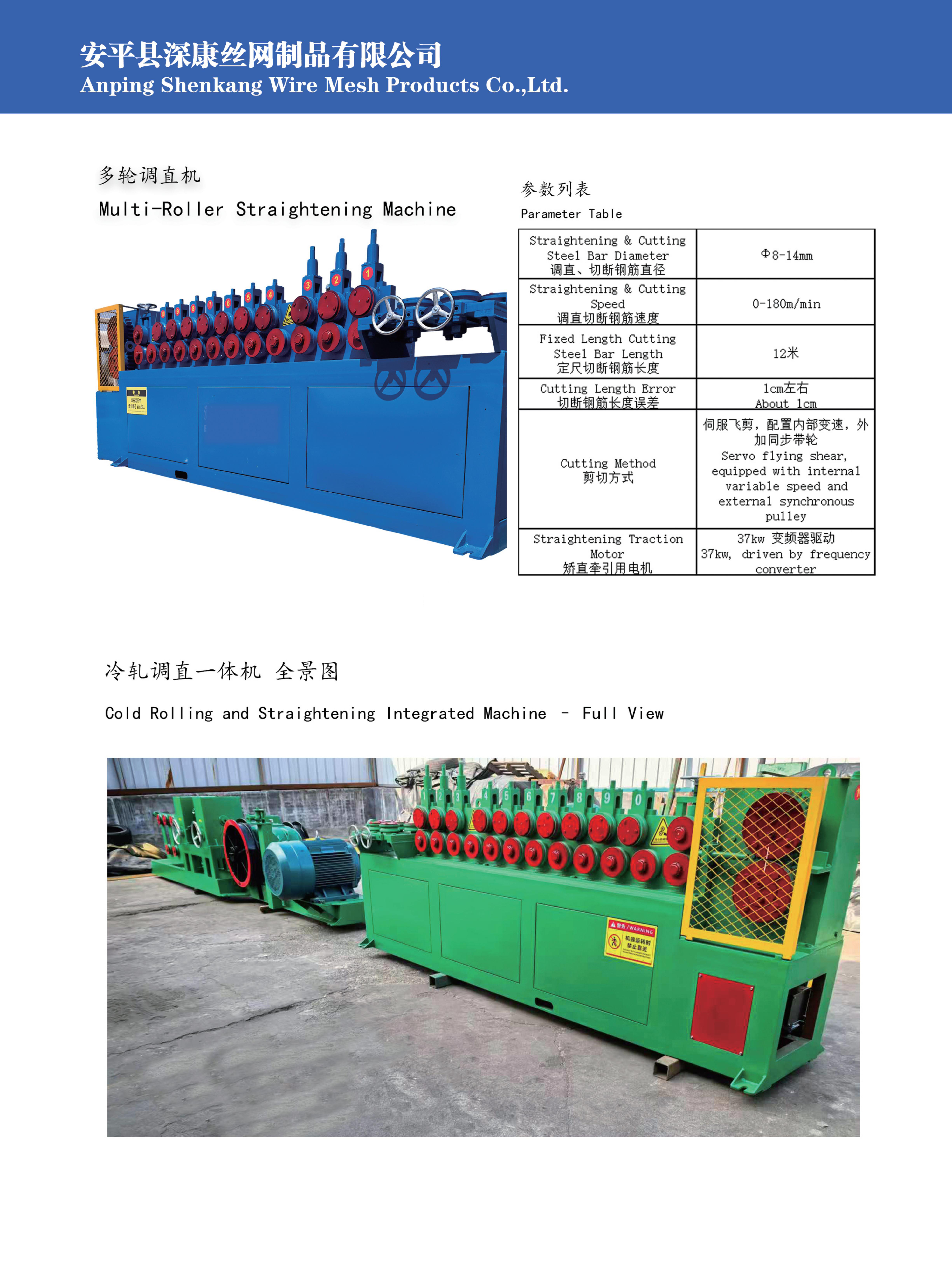

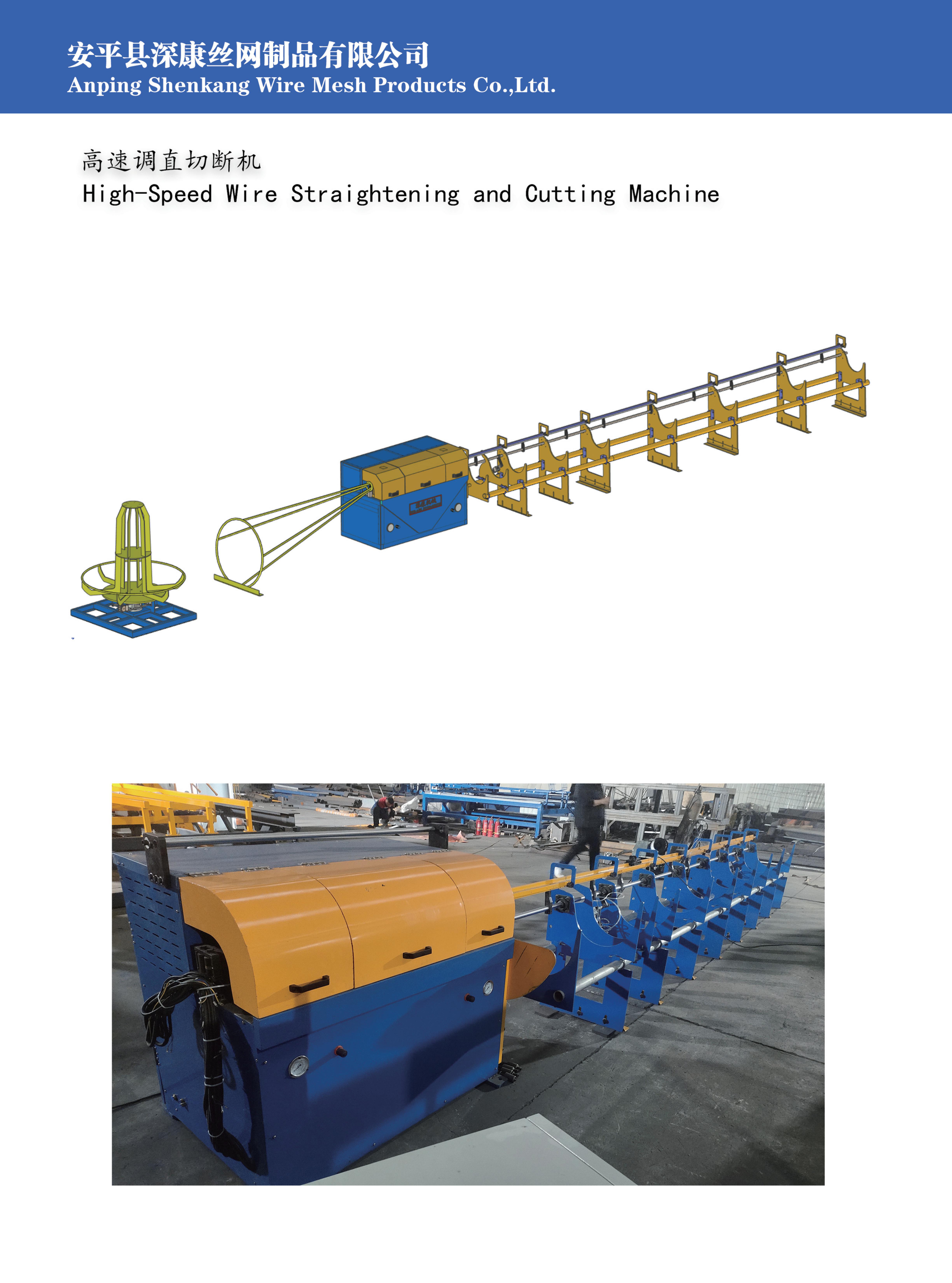

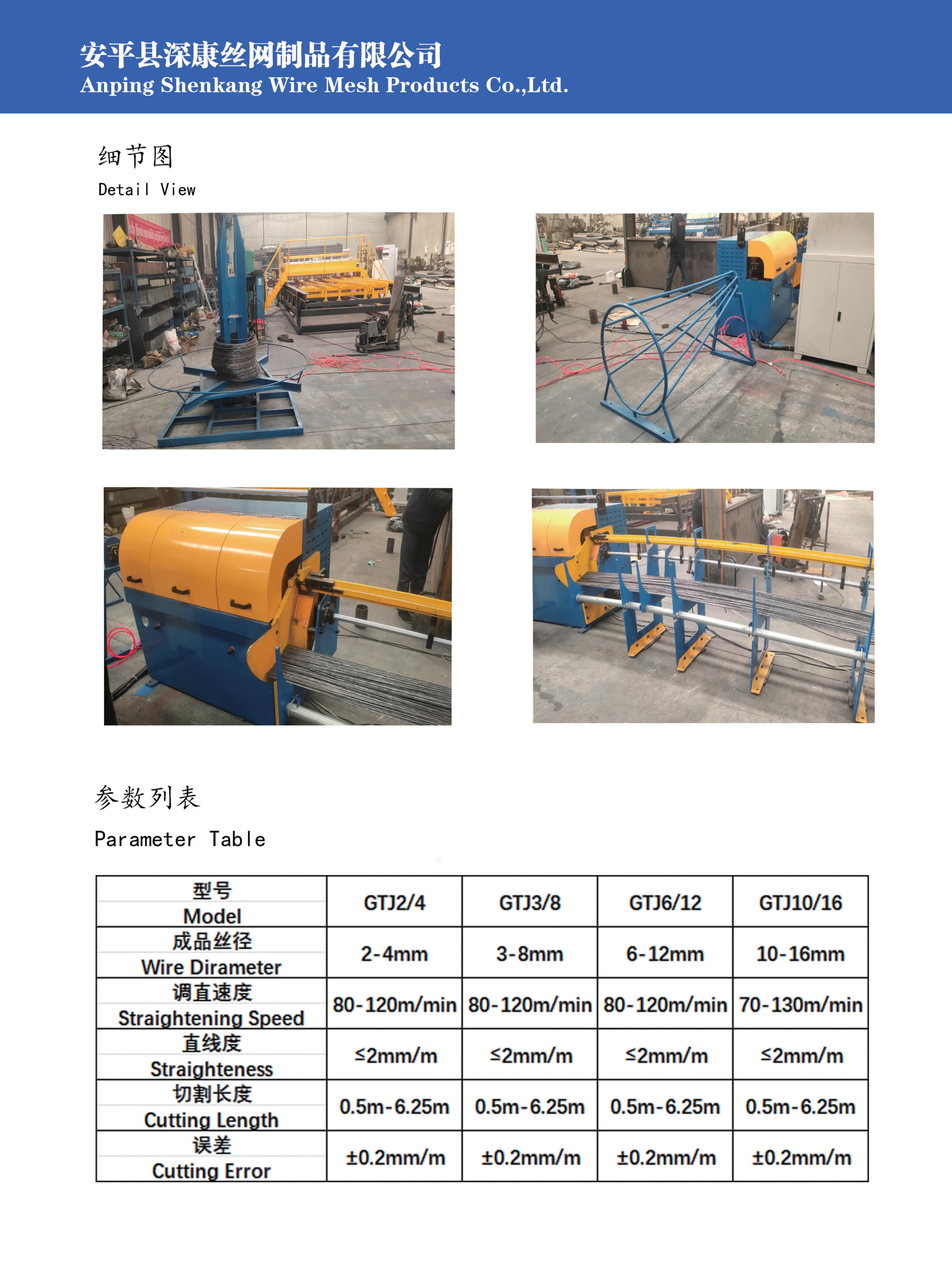

Steel bar straightening machine
The steel bar straightening and cutting machine is a device used to process steel bars. It is mainly used to straighten and cut steel bars to meet the precise size requirements of steel bars in buildings and concrete structures. This kind of equipment usually consists of a feeding system, a straightening system, a cutting system and a discharging system.
The feeding system is used to feed the bent steel bars into the straightening and cutting machine. The straightening system straightens the steel bars through a series of rollers or clamps. The cutting system is used to cut the straightened steel bars according to the preset length. , and finally the cut steel bars are sent out through the discharging system.
Steel bar straightening and cutting machines usually have efficient and precise straightening and cutting capabilities, and can adapt to steel bars of different diameters and materials. This kind of equipment is usually equipped with an automated control system, which can realize automatic adjustment and operation, improve production efficiency and reduce labor costs.
Steel bar straightening and cutting machines are widely used in the construction and concrete structure industries. They can improve the accuracy and efficiency of steel bar processing and ensure the quality and stability of steel bars in building structures.
-
Mechanical hanging wire automatic net out and net down mesh welding machine for steel mesh
Mechanical wire hanging and automatic netting and netting. Reinforced mesh welding machine is an efficient equipment used to produce reinforced mesh and welded mesh. It has automatic feeding, web weaving, welding and cutting functions. The machine can adjust the mesh size and welding spacing as needed to suit various requirements. The equipment is easy to operate and can realize automated production by setting parameters through the control panel, greatly improving production efficiency. At the same time, the machine has a stable structure and high welding quality, which can meet the requirements for the use of steel mesh in construction, highways, bridges and other fields. In addition, the equipment offers a high degree of safety and reliability, ensuring the safety of operators and equipment.
-
Mechanical automatic feeding and automatic netting and netting, steel mesh welding machine
The mechanical automatic feeding and automatic feeding and netting and netting and netting steel mesh welding machine is an advanced equipment, mainly used to produce various specifications of steel mesh and welded mesh products. The machine can automatically feed raw materials, automatically weave into grids, automatically weld and cut into required sizes, achieving fully automated production. It has a precise radial control system to ensure the accuracy and consistency of the grid size. This equipment uses advanced welding technology to ensure that the welding points are firm and reliable, with high welding quality and is suitable for steel bars of different materials. Easy to operate, the grid size and welding spacing can be adjusted according to needs. In addition, this equipment also has a high degree of safety and reliability, and is an indispensable and important equipment in modern production.
-
Pneumatic hanging wire, automatic diameter feeding, automatic net turning and netting, steel mesh welding machine
Pneumatic hanging wire, automatic diameter feeding, automatic turning and netting, steel mesh welding machine is an advanced welding equipment, mainly used for welding steel mesh. It has an automatic diameter feeding function, which can accurately adjust the size of the steel mesh as needed to improve production efficiency. At the same time, it is equipped with automatic net turning and net falling functions, which can automatically adjust the angle and moving position during the welding process to ensure the accuracy and consistency of welding. The equipment uses pneumatic devices, has stable operating performance, and can meet the needs of high-intensity and high-efficiency production. Overall, this kind of equipment can improve production efficiency, reduce manual operations, and ensure welding quality. It is one of the very important equipment in the modern construction industry.
-
Pneumatic automatic feeding diameter automatic net out and net down steel mesh welding machine
The pneumatic automatic feeding and automatic feeding and dropping mesh steel mesh welding machine is an efficient welding equipment, suitable for producing various specifications of steel mesh and welded mesh products. The equipment adopts a pneumatic automatic diameter feeding system, which can automatically adjust the diameter and spacing of the steel mesh to improve production efficiency. At the same time, the automatic net out and net down functions can ensure the continuous production and high-quality output of welding products.
This device has the following features:
- Efficient production: The use of automatic feed system and automatic net out and net function can achieve efficient production and save labor costs.
- Flexible application: The specifications and sizes of welding products can be adjusted according to customer needs, and have a wide range of applications.
- Stable and reliable: Using advanced pneumatic control system and welding technology to ensure stable and reliable welding quality.
- Easy to operate: The equipment is simple to operate, easy to maintain and manage, and reduces the cost of use.
In short, the pneumatic automatic diameter feeding and automatic net dropping and netting steel mesh welding machine is a powerful, stable and reliable welding equipment, suitable for the production and processing of steel mesh and welded mesh products.
-
Up and down wire supply type welding mesh machine
model JZW2500/JZW2100/JZW1600/JZW1200 Welding mesh width <2500mm/≤2500mm/<2500mm/≤2500mm Welding wire diameter 3mm-6mm/4mm-8mm Vertical line spacing 50mm-200mm Horizontal line spacing 50mm-200mm Transformer power >400KVA Welding speed 60-95 times/minute Control System PLC Welded mesh material Cold drawn wire, galvanized wire diagonal error ±2mm (2 meters long mesh) The upper and lower wire supply type mesh welding machine is a device specially used for welding steel wire mesh. It usually consists of two upper and lower welding platforms, which can realize the simultaneous welding of the upper and lower steel wire mesh. The equipment has a variety of welding modes to choose from, and can perform single-point, multi-point or linear welding as needed to meet the production needs of steel wire mesh of different specifications and shapes. The upper and lower wire supply type mesh welding machine is also equipped with an advanced automatic control system, which can achieve precise positioning of steel wire mesh and precise control of welding parameters to ensure welding quality and production efficiency. This kind of equipment is often used in construction, fencing, breeding and other fields. It is one of the important equipment to improve production efficiency and product quality.
